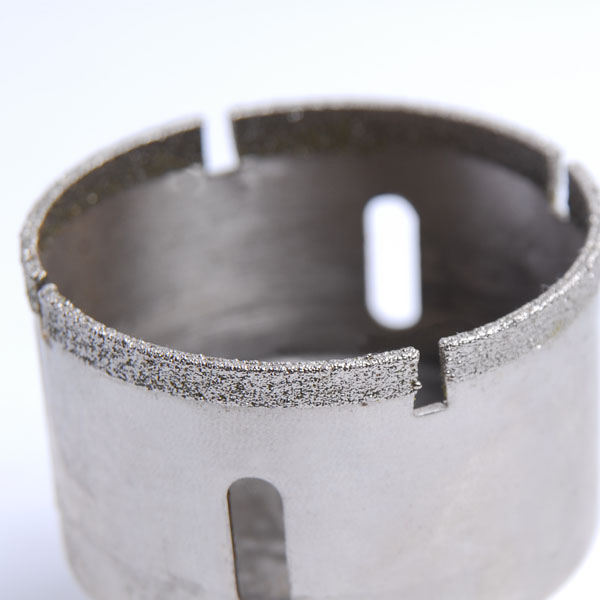

金鋼石電鍍鑽頭表面 硬度與鑽石相同！！
洗孔時請先將開孔器傾斜45度角，在表面輕磨出定位弧線後，再將其豎立鑽孔。
適用範圍廣泛：大理石、花鋼石、玻璃(不得用於強化玻璃)、磚頭、水泥磚等。
*洗孔時請使用冷水冷卻開孔器!
規格
材質：鑽頭為金剛砂電鍍
| 尺寸 (總長mm /鑽孔深度mm /柄長mm) | ||
| Ø3mm / 總長50 mm | Ø4mm / 總長50 mm | Ø5mm / 總長50 mm |
| Ø6mm / 總長65 mm | Ø8mm / 68.40.28 mm | Ø10mm / 68.40.28 mm |
| Ø12mm / 68.40.28 mm | Ø14mm / 68.40.18 mm | Ø16mm / 68.40.17 mm |
| Ø18mm / 69.40.18 mm | Ø20mm / 68.40.18 mm | Ø22mm / 70.41.19 mm |
| Ø25mm / 70.40.20 mm | Ø28mm / 70.40.20 mm | Ø30mm / 72.40.21 mm |
| Ø35mm / 70.40.19 mm | Ø40mm / 68.40.19 mm | Ø45mm / 60.40.19 mm |
| Ø50mm / 71.40.20 mm | Ø55mm / 71.40.20 mm | Ø60mm / 70.40.20 mm |
| Ø65mm / 72.40.20 mm | Ø70mm / 70.40.20 mm | Ø75mm / 70.40.20 mm |
| Ø80mm / 70.40.20 mm | Ø85mm / 70.40.20 mm | Ø90mm / 75.45.20 mm |
| Ø100mm / 65.35.20 mm | Ø110mm / 65.35.20 mm | Ø120mm / 66.35.20mm |
| 重量 | ||
| Ø3mm / 1.5g | Ø4mm /1.5g | Ø5mm / 4g |
| Ø6mm / 4g | Ø8mm / 8g | Ø10mm / 10g |
| Ø12mm / 14g | Ø14mm / 20g | Ø16mm / 20g |
| Ø18mm / 28g | Ø20mm / 34g | Ø22mm / 40g |
| Ø25mm / 42g | Ø28mm / 60g | Ø30mm / 72g |
| Ø35mm / 72g | Ø40mm / 84g | Ø45mm / 100g |
| Ø50mm / 106g | Ø55mm / 154g | Ø60mm / 142g |
| Ø65mm / 194g | Ø70mm / 228g | Ø75mm / 264g |
| Ø80mm / 282g | Ø85mm / 314g | Ø90mm / 420g |
| Ø100mm / 228g | Ø110mm / 304g | Ø120mm / 306g |
